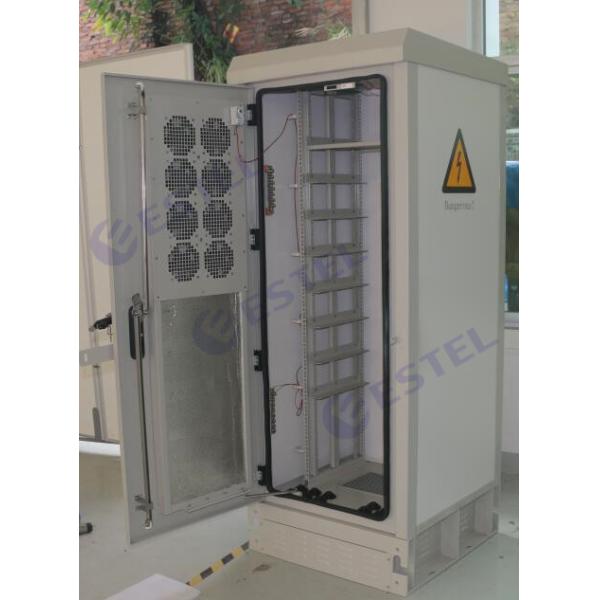

19 Inch Rack Mount Outdoor Telecom Cabinet Anti Theft Lock Bar 8 Ventilation Fan

Name: 19 Inch Rack Mount Outdoor Telecom Cabinet Anti Theft Lock Bar 8 Ventilation Fan
Brand: ESTEL
Price: 1 USD

Quality 19 Inch Rack Mount Outdoor Telecom Cabinet Anti Theft Lock Bar 8 Ventilation Fan for sale

Brand Name : ESTEL

Model Number : ET7070180-EQ

Certification : ISO9001

Place of Origin : China

MOQ : 1PC

Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P

Supply Ability : 2000PCS per month

Delivery Time : 20 woking days

Packaging Details : Wooden Case

Protection : IP55

Equipment Installation : Standard 19" rack

Door : One front door

Inner Space : 32U

Coating : Anti corrosion powder coating

Cooling : AC220V 8 Fans

Light : -48VDC

Working Temperature : -40°C ~ +55°C

Relative Humidity : 5% ~ 100%

Bearing Load : 1000kg

Contact Now

19 Inch Rack Mount Outdoor Telecom Cabinet With Anti-theft Lock bar and 8 Ventilation Fan 1000kg Bearing Load

1.Technical Parameters

Configuration	Item	Technical Parameter
Cabinet Body	Model	ET7070180-EQ
	Size	External Size W×D×H: 700mm×700mm×1800mm (19”,32U)
	Component	The whole cabinet is composed of three parts: the top cover, the cabinet body and the base. The installation method is floor mount.
	Material	Sandwich structure panel, galvanized steel, double wall with heat insulation: Left side, right side back side: Sandwich structure panel, galvanized steel, inner wall is 0.5mm, outer wall is 0.5mm, 45mm EPS heat insulation Top: galvanized steel ,inner wall is 1.0mm, outer wall is 1.2 mm, 40mm PEF heat insulation Door and bottom: galvanized steel ,inner wall is 0.8mm, outer wall is 1.5 mm, 40mm PEF heat insulation Base: 2.0mm galvanized steel
	Structure	Double wall, with insulation One front door, hidden zinc alloy hinge Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with three-point lock device, and including a security bar 5mm thick for padlock, don't include padlock Door stopper / wind lock is installed on the inside of the cabinet door Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof The air inlet and air outlet are all installed with a filter, and the filter can be cleaned and replaced. Include standard 19“ rack inside the cabinet, high universality. Special rack or electrical lining board inside the cabinet can be custom made. Equipped with cable manager Cable inlets at the bottom of cabinet
	Surface Treatment	Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
	Color	Outdoor polyester light grey RAL 7035 coating or custom made
	Ingress Protection	IP55 or custom made
	Working Temperature	-40°C～+75°C
Cooling Method	Compressor Air Conditioner	/
	Heat Exchanger	/
	TEC Air Conditioner	/
	Fan	AC220V, 8 PCS
Monitoring	Monitoring Unit	/
	Smoke Sensor	/
	Vibration Sensor	/
	Water Sensor	/
	Door Sensor	/
	Temperature & Humidity Sensor	/
	Other	/
Other	Illumination	LED light, 48VDC

2. 2D Drawing

19 Inch Rack Mount Outdoor Telecom Cabinet Anti Theft Lock Bar 8 Ventilation Fan

3. 3D Drawing

19 Inch Rack Mount Outdoor Telecom Cabinet Anti Theft Lock Bar 8 Ventilation Fan
