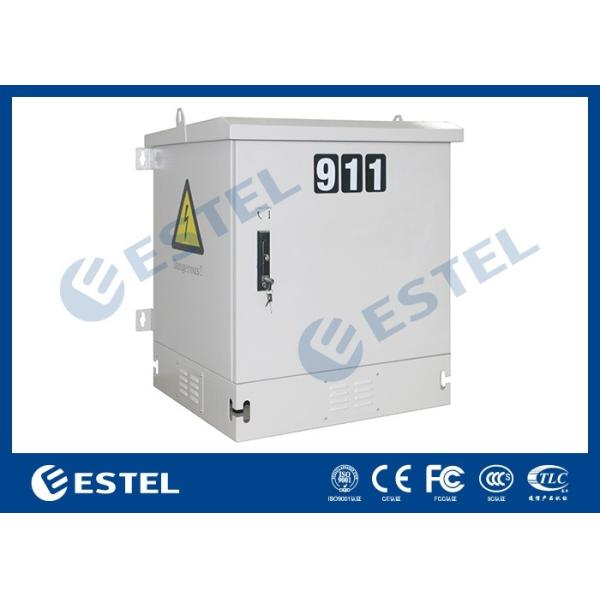

Single Wall Outdoor Electrical Enclosure

Single Wall Outdoor Cabinet Supporting Three Installation Methods, Wall Mounted, Pole Mounted and Floor Mounted

• Structure

The cabinet is made of hot dip galvanized steel, single wall structure. It is easy for installation and with perfect sealing performance.

Equipment Compartment: The ET706085PWF-S cabinet is used for installing telecom equipments and battery. The cabinet is a single-wall cabinet, It uses 2 fans for cooling. It is sunproof and waterproof.

Door and Door Lock: The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock.

Cabinet External Size : 700x600x850mm (W×D×H)

Cabinet Internal Size : 610x510x640mm (W×D×H)

• Dimension Diagram

• Applicable Environment Conditions

Working Temperature: -20°C ~ 55°C

Storage Temperature: -40°C ~ + 70°C

Transport Temperature: -50°C ~ +70°C

Relative Humidity(RH): 5% ~ 100%

Air Pressure :62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)

Solar Radiation Intensity: 1124 × (1±5%)W/m2

• Technical Specs

• Material: single wall, galvanized steel, 1.5mm thickness
• Ingress protection: IP55
• Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
• Equipment Installation Method:19” standard rack and tray
• With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
• Assembled type
• Cooling : 2 fans, DC48V, installed on the top
• LED Lamp:DC48V,
• LED lamp sensor: used for controlling LED lamp on /off

Supporting three installation methods: pole mounted , wall mounted and floor mounted

• Features

• Mounting Method

• Ventilation

Air Outlet:

Air Inlet:

• Packing

The cabinet packing is wooden case in compliance with GB3873-83, damp proof and shock proof. The outside of the packing is painted with damp proof sign, shock proof sign, direction sign, etc.
